Deltawood high production mortising machines – now available via JJ Smith

Deltawood is the replacement brand name for what was formerly known as ‘Lari & Lari’, with the new company continuing the long tradition of manufacturing multi-head and CNC oscillating swing chisel mortisers, specifically for the volume machining of gate parts, fence posts, doors and windows. The machine range is now available exclusively in the UK through woodworking machinery specialists JJ Smith.


The RD3C-M model is supplied with three swing chisel mortising heads as standard; these are manually adjusted on the ‘X’ axis, with a 3m working length capacity. Once activated, the clamping operation, table movement and mortising cycle, is automatic. This machine is ideal for the high production output of components that have the same size and position of mortise slots. On average, it’s possible to produce a mortised component with up to five mortise slots in less than a minute.

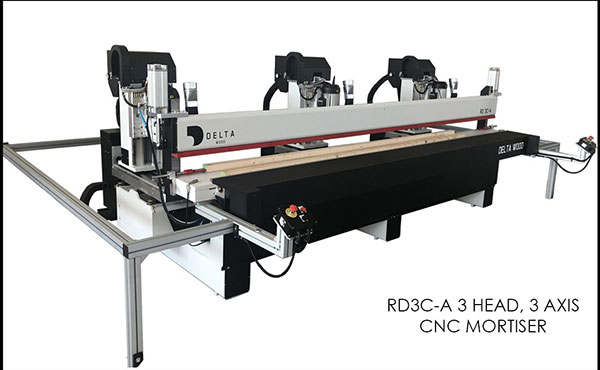

The RD3C-A CNC model offers a higher degree of flexibility, which is required to produce different size mortise slots in varying positions. The machine is equipped with three independent oscillating mortising heads that are controlled on the ‘X’, ‘Y’ and ‘Z’ axis by the CNC program. Each head is equipped with an automatic anti-splinter device with chip removal hood. Programming is very simple via the Windows based ‘D-WOOD’ parametric software, which uses electronic macro templates. Optionally, the machine can be supplied with up to four horizontal electro spindles, which are also controlled via the CNC for drilling/milling operations such as hardware recesses. It’s also possible to configure the machine with infeed and outfeed loading/unloading systems.

For further information, contact JJ Smith on 01515 489 000, email [email protected] or visit the website:

JJ Smith & Co (Woodworking Machinery) Ltd
Moorgate Point, Moorgate Road
Knowsley Industrial Park, Kirkby
Liverpool, L33 7DR
0151 548 9000
