Now available from JJ Smith: Centauro Alfa Jamb door frame line

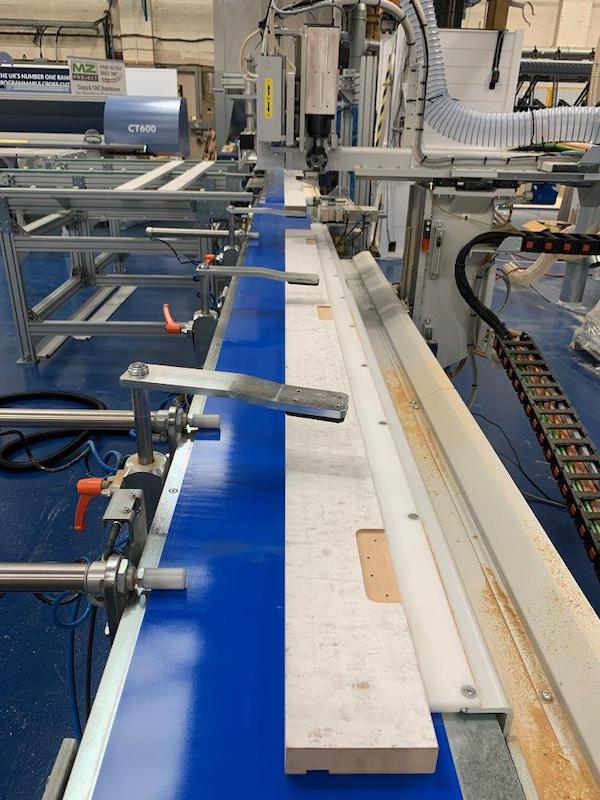

The Centauro Alfa Jamb NC is ideally suited to machining operations on frames such as hinge recessing, lock slots, keep plates and three-point locks

Building on the success of the Alfa NC milling and slotting machines for doors and frames and 100 UK sales to date, Centauro has recently launched its Alfa Jamb automatic through feed machine. Dedicated to the machining of door frames, it’s available exclusively in the UK and Ireland through JJ Smith.

Extremely simple to program

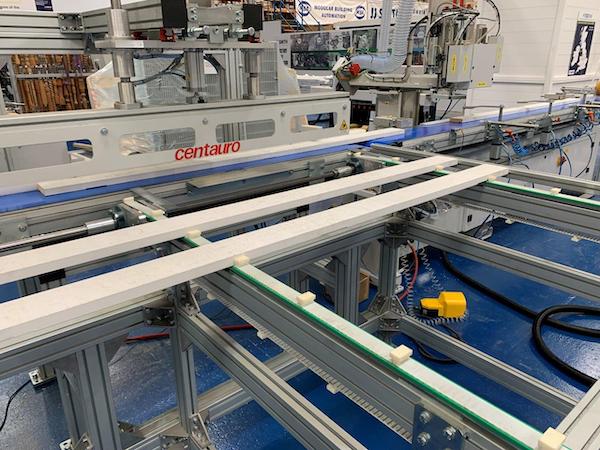

The Alfa Jamb consists of a horizontal infeed loading system, motorised feed belt, Alfa machining centre, outfeed pneumatic ejectors and inclined horizontal discharge station. The machine is equipped with a 3.3kW router head, which can work in both vertical or horizontal, making it suitable for hinge recessing and lock plate machining, etc.


The machine is equipped with a CNC router head that can work in the vertical or horizontal for hinge and lock plate recessing or slotting

There’s also an additional small programmable router head, which can be used for spot drilling hinge screws and/or the squaring off round corners. Maximum working length is 2,800mm. As with the standard Alfa, the Alfa Jamb is extremely simple to program thanks to the colour graphic industrial level touch-screen control unit, which uses a selection of different pre-defined macro templates.

Production capacity

With regards to production output, based on a typical door frame with, say, three hinge recesses each with four spot holes, it’d be possible to process up to 15-20 sets of jambs per hour with minimum operator input. The machine can work in sequence – left jamb/right jamb – or in volume with rebate machining for jamb or head.


There’s also a small router that can be used to spot drill for hinge screw holes and/or squaring of the hinge recess corners

It can also be used to mill out for closers in heads. The Alfa Jamb is just one of a range of specialist door and frame processing machines that JJ Smith can offer from Centauro, Comec and Essepigi, from simple standalone machines to complete high production turn-key lines with automatic handling, label printing and QR code reading.

For further information or to arrange a demonstration, call JJ Smith on 0151 548 9000, email [email protected] or visit the website:
