Machining centres for furniture: SCM’s morbidelli range

Morbidelli x200/x400’ is the latest generation of SCM solutions for nesting, which are ideal for flexible ‘batch 1’ production. Pieces, even shaped ones, in a variety of forms and sizes, can be cut on a single numerical control machining centre (CNC) with production levels, which was once considered inconceivable for this kind of machining.

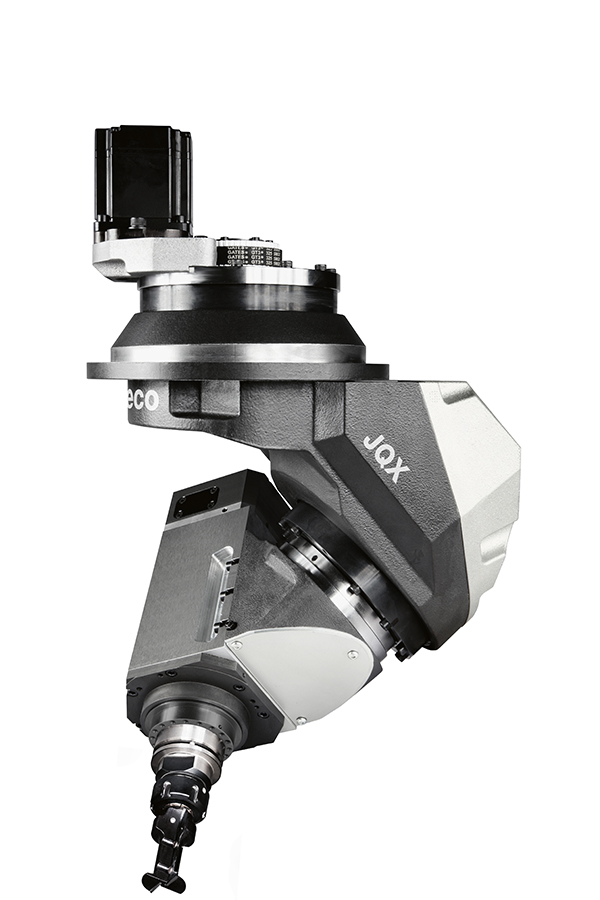

Unique flexibility – all the machining work is carried out without having to remove the spoil board panel, thanks to the X-POD suction cups and the JQX (Just Quality eXtreme) five-axis electrospindle. This therefore dramatically reduces the machine’s set-up times.

Previously inconceivable productivity – thanks to the new labeller inside the machine’s cabin, the labelling of individual panels is carried out automatically, before the panel is machined, even in the case of a standalone version, which optimises cycle times.

Maximum grip – it’s possible to block even the smallest pieces during machining, thanks to the new X-Vacuum system. This allows for a dynamic vacuum to be activated, concentrating it on the worktable zone where machining is ongoing.

Maximum versatility – the machining centre can be configured to suit a business’ requirements. The morbidelli x200/x400 can be used in Smooth, Neutral or Dynamic mode to personalise program applications ‘in an instant’.


All-in-one machine centres for panel drilling & routing

Morbidelli m100 – the All-in-One Technology revolution doesn’t end here. Morbidelli m100 continues to surprise and evolve further with the new compact solution that makes the five-axis machine the smallest on the market. All the advantages of the morbidelli m range are provided in an ultra-compact solution.

Morbidelli m200 – the morbidelli m200 range confirms itself globally as the benchmark for CNC machining centres. Thanks to its solid structure, the 250mm piece transit, the five-axis Prisma KT and the morbidelli m200, the Flexmatic plane can handle not only every kind of panel machining, but also those for solid wood.


Machining centres for panel drilling, routing & edgebanding

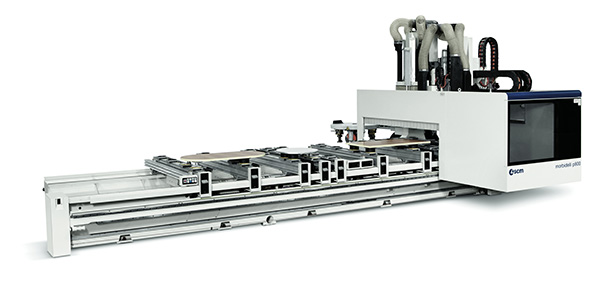

Morbidelli p800 – this is SCM’s no-compromise solution, which combines the traditional operations carried out on a machining centre with the possibility of edging even the most difficult shaped pieces. The combination of the MATIC work plane and the innovative operator unit means morbidelli p800 can machine even the most complex pieces, in only a few steps. From the 0-360° edge closures, to the tilted edgebanding, via automatic change of the pressure roller, there are no limits for this machining centre.

Drilling solutions

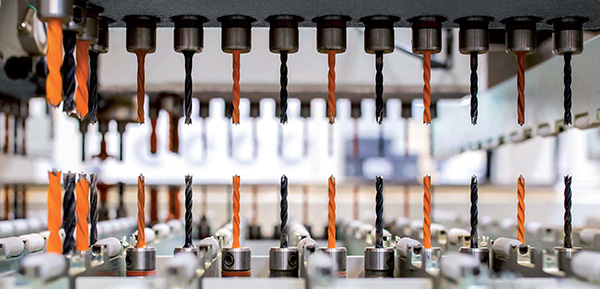

Morbidelli ux200 – flexible drilling at SCM is possible thanks to morbidelli ux. With the addition of four separate operator units (two upper and two lower), any piece can be machined in just a few steps. Furthermore, the possibility of processing two overlapping pieces means the production of symmetrical pieces can be doubled. Blade units, electrospindles, tool change and the possibility of integrating a production line makes morbidelli ux200 the machine that best combines flexibility and high productivity.

For more information on these and other machines from SCM Group, see



SCM Group
Blenheim House
Camberley Road
Bulwell, Nottingham, NG6 8UW
0115 977 0044
